NABOO ELECTRONIC BOARDS
The operation and the user interface of the appliance systems are managed by electronic cards
The electronic cards are:
I/O card
Display
Auxiliary
I/O Board LA65303921
The relay or I/O board controls the operation of the unit based on the indications provided by the display that acts as a user interface.
analog inputs highlighted in green, digital inputs (open/closed) highlighted in blue; inputs and outputs with live line voltage that are highlighted in red
Core probe
3-4 Condensation Probe SD (+ 4)
5-6 Boiler Probe SB (+ 6)
7-8 Chamber Probe SC (+ 8)
11-12 PA water pressure valve
13-14 PV Thermometer Display
15-16 B3 Door microswitch
BUZ Fan M3
17-18 Tension line 15Vdc
23 I. Neutral line
24 I. Phase line L1 from F2
25 I. Phase line from thermal motor protec.
27 O. Neutral line
28 O. Neutral utilities
32 O. Contactor C6 – A1
35 O. Direct steam S.V. S1
36 O. door lighting
37 I. Phase line L1 or F3
39 O. External buzzer
40 O. Detergent pump PD1
41 O. Washing S.V. S7 + Washing motor
43 O. motor rele RB
44 O. Detergent pump PD2
45 O. Cooling Fans M2
46 O. Hood Speed low/high
19 O. motor rele RD
21 O. motor rele RS
RS485 Inverter +
RS485 Inverter -
RS485 Inverter GND
RJ45 Display board
Warning: The relay board also acts as a power supplier for all expansions connected on the BUS; it is essential to connect the display to the RJ45 connector dedicated to it (KEYBOARD) because connecting it to the RJ45 connector dedicated to expansions (EXP) could cause serious damage to the boards
SOFTWARE/FIRMWARE
The operation of the relay board is based on proprietary software generally identified as Firmware (FW).
The FW controls and regulates the operation of the device based on the operating parameters, inputs from the sensors and the settings given by the user on the display.
For obvious reasons the FW must be aligned with the SW of the display card.
SOFTWARE/FIRMWARE
To better support and grant high reliability on the field, the software contained in the Display PCB contains a copy of the firmware and in case the display card is not aligned and fails to communicate with the relay board the system alerts and tries to install the FW version to align the two boards

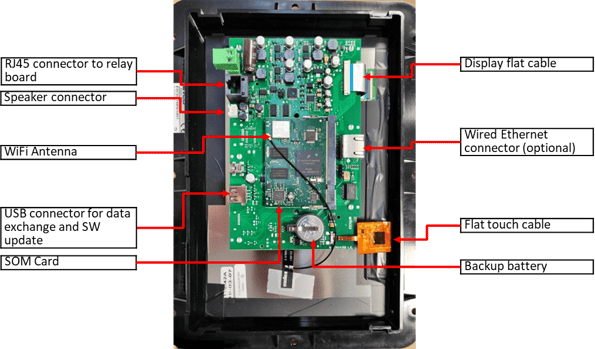

Display Board
The display board, equipped with a plastic frame, is done by three NOT-DISCOMPOSIBLE parts; the display board, the SOM, that carries memory and processor, and the touch display.
RJ45 plug to connect the relays board
Laud speaker connector
Wi-Fi Antenna
USB connector for data exchange and SW update
SOM card (do not remove)
Backup battery
Flat touch cable
Wired Ethernet connector
Display flat cable
The display board is fixed to the front panel via 8 nuts and a gasket is installed between panel and display, protecting the display from water, grease and vapor infiltration.
In case of removal of the board, always replace this gasket because damage due to infiltration is not covered by the warranty. If replacement is for warranty Display board MUST BE RETURNED TO LAINOX
The display board is available as
LAR65302490 NABOO Reloaded,
LAR65302493 for NABOO Boosted
LAR65303960 for NABOO 5.0
hardware is one but software preinstalled differ each code. Possible to update the software to adapt to a different unit but the change must be done carefully (see TI_03_2021).
We suggest avoiding to downgrade a display
SOFTWARE
The operation of the display card is based on the Android operating system and on this OS is installed the NABOO application that below we will indicate as Software (SW).
When turned on, the operating system starts just like a smartphone; Once the operating system is booted, an image is presented during the start of the Naboo application.
If the display is replaced, check if there is a backup of the unit configuration; if any, load the configuration from USB, otherwise reconfigure the unit from the service level.
Display Board - Software update
Display board can be updated installing the latest SW version.
Is recommended to keep updated the SW in order to achieve bug fix and new features which can improve and extend cooking capabilities.
On-line software update
When connected to the cloud, the unit automatically shows on the status bar if a new software version is available.
Follow instruction on the display which will guide you to the update; when completed unit must be restarted.
If synchronization has been disabled, you can use the «check software update» button.
If the Wi-Fi connection is unstable or slow, do not to use this update method.
USB software update
All the units have a USB port for updating the software. The latest version is always available on the website http://www.service-planner.lainox.it.
Download the SW on a memory stick and plug it into the USB port on the Naboo.
Select Complete Software
A window will appear to select the file containing the software with the extension “.nbu”
Follow instruction on the display which will guide you to the update; when completed unit must be restarted.
Display Board – Booting Sequence
If the boot is unsuccessful and a) and b) continue to be displayed, the operating system is probably corrupted.
Contact LAINOX support to check if it's possible to recover the display
Display operate as an Android device and has a booting sequence with automatic launch of the Naboo application.
Start-up sequence
When switched on, the display flashes briefly to indicate that the sequence has started.
a) After a few seconds, Android shows the first real screen
b) Then, the applications start loading
c) After a) and b), the “loading” screen may appear with this message at the bottom; press this line to access to Maintenance level
d) The Naboo application is starting (white since version 10)
e) The Naboo application is ready
In the event of a power failure, a large spanner symbol will appear on screen and will be needed some few seconds to have access to the functions.
Power failures are the main cause of damage to the operating system and database.
In the event of repeated reboots (3 times), the system will be completely reinstalled from the
f) Will appear the Recover mask to let recover the system from the last backupIf the reboot stops at d), it will be possible to delete the database or reinstall the application from Maintenance with a click on Loading from mask c)
g) Enter “Maintenance”

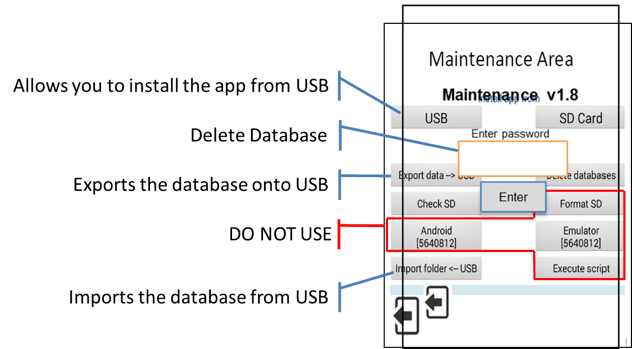

Display Board – Maintenance
Possible to access to operating system functions through the maintenance window.
Access
When you keep pressed Loading during the booting sequence, you enter the Maintenance window g) which gives you access the data (not for customers) with the password «stools»
Install application from USB
Export database to USB
Delete database
Import database from USB
In some few cases (if the booting sequence stops on screen d)), the issue can be solved by installing the application.

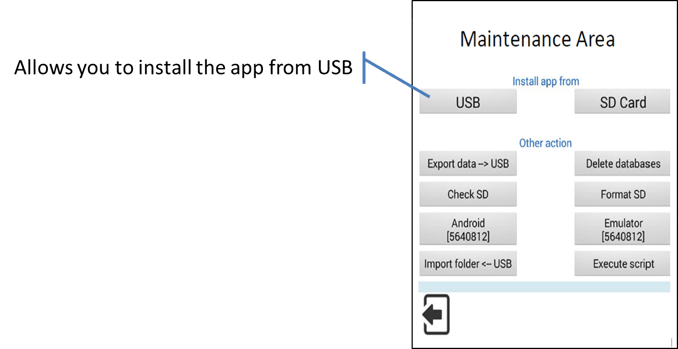

Installing the application
1) Download the software (#name#.nbu file) from the service portal
2) Rename the downloaded file #name#.nbu in #name#.zip and extract from this folder the files
3) Rename the file #name#.apk in Lainox.apk and copy it on the USB stick. For Compact units, rename the file as Lainox7h.apk (if horizontal) or Lainox7v.apk (if vertical)
Enter Maintenance mode, connect the USB, and select Install app from USB.
The application database contains all information to run the unit correctly.

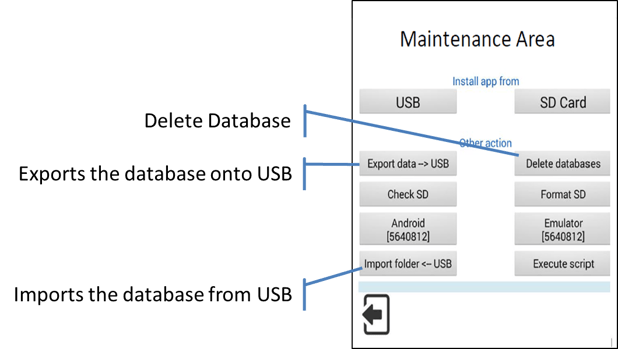

Application database
Possible to
- Export data onto the USB key
- Import data from the USB key
- Delete the database (will be generated a new DB)
Auxiliary control Board LA65303910
This board controlled by bus manages Chemical Detection system, with related flowmeters.
A) Power input 15Vdc
B) BUS BLNX connection
C) Flow meters
