Accessing
Warning: The service level is reserved exclusively for authorized and trained technicians and allows you to set, verify and modify the operation of the device.
Select the Gear icon
Will appear settings mask
Select Tools icon and insert the password

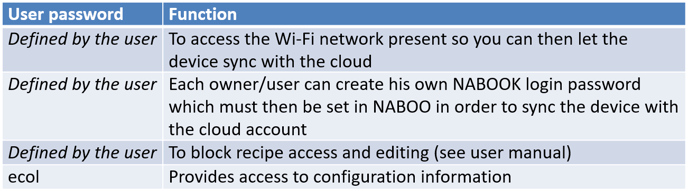

USER PASSWORDS
Warning: the technical passwords are reserved only to trained technicians and should not be communicated to third parties; LAINOX reserves the right to take action if the people who have shared the information are identified.
Operational Tests – Relays board
From this mask it is possible to check all the inputs and outputs of the I/O board.
If output/input is active, the button is edged blue; if the function is not present, the button is disabled (gray).
You can only activate one exit at a time and you must close the door for safety reasons
Magnetron Management
From this mask you can select which magnetron to check.
From this window possible to check performances of magnetron and status of safeties switches
Possible to select:
A) Magnetron 1 to select magetron 1
B) Magnetron 2 to select magnetron 2 (possible to activate both)
C) Setting activation time consider the 10 sec. for startup
D) Play to activate selected (also stop)
Possible to check status of:
E) Door micro
F) Door micro
G) Termal safety cabinet
H) Consense Magnetron
I) Alarm magnetron thermal switch
J) Return previous level
Counters
In this form it is possible to view the activation and use times of all the various functions as well as you can reset the maintenance request
Num. di Starts it’s number of power on of the unit
Spegnimenti non corretti it’s number of power failures which can affect the congruence of the application database
Number of washing (by type)
Heating time of the boiler
Calout by delay time and numbers
Warning: Maintenance request come after 365 days and is mandatory to reset the counter after an inspection. If customer ignore the request will be visible the delayed time from the last maintenance and if failure is due to lack of maintenance warranty will expire
Giorni pulizia filtro is time since the last confirmed air filter washing.
Giorni Manutenzione is time since the last maintenance/service visit
Alarms History
Warning: In the case of preventive maintenance, it is mandatory to check the Alarms historian in order to better evaluate corrective actions
In this screen it is possible to have all the last alarms recorded by the device with date and time in which the event occurred.
Possible to select what to show between all alarms, serious alarms and warnings
OTHER SETTINGS
From this menu is possible import/export info and do further advanced settings
- Update Recipes DB allows to update an old or corrupted recipes database using an external file
- Default Recipe DB allows to restore the original recipes database in the screens using the internal database
- Demo Mode to switch the unit in exhibition mode with main power outputs disabled
