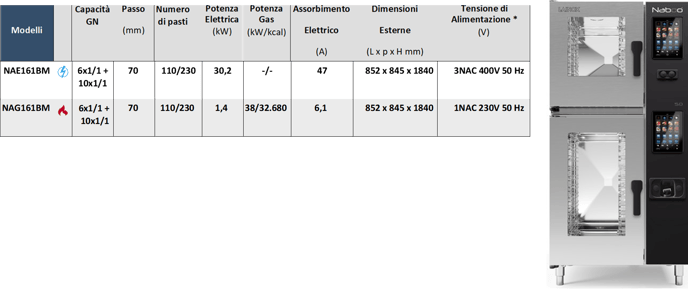

Sapiens - Product line

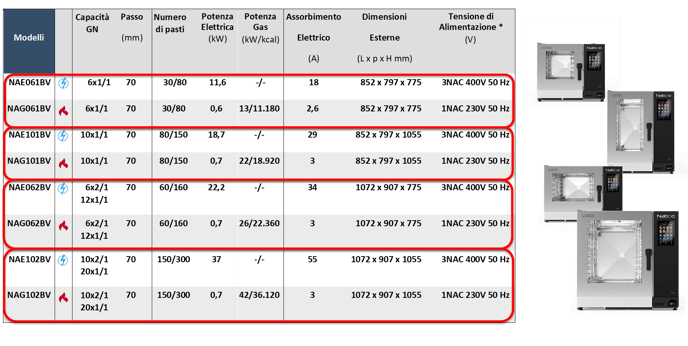

Table / Stand models

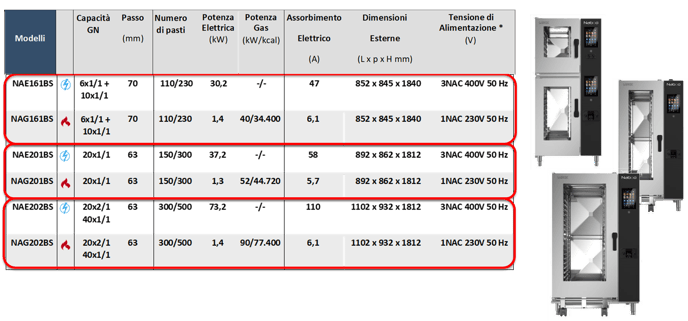

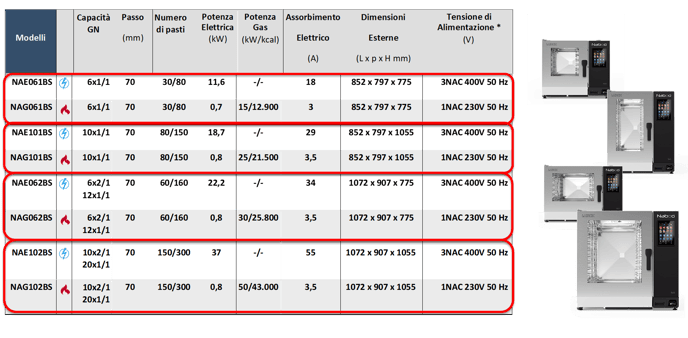

Table / Stand models with boiler

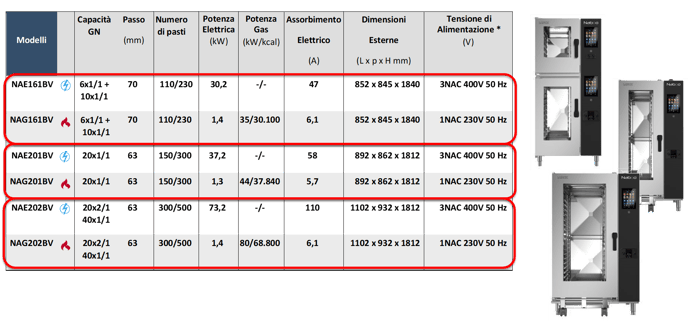

Floor models



Floor models with boiler



Models with lower unit with boiler



Sapiens Boosted

The SAPIENS line has the same identical dimensional characteristics as the NABOO line; only the electronic boards component changes.

Sapines allow same performance of Naboo and are available in a simple and effective user interface programs, fan speed settings and most of the Naboo features.

AROMA

The aroma line has the same characteristics as the NABOO direct steam models with the variant that the distance between the trays is 90mm and therefore the number of trays (600x400) is reduced from 6 to 5, from 10 to 8 and from 20 to 15.

The Aroma is also available with Sapiens technology.

Oven identification

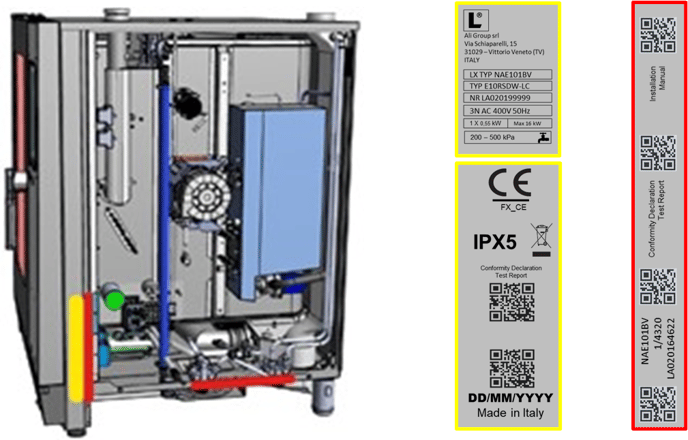

All appliances are identified by an identification plate applied to the right side of the operator panel.

The plate attached to the left side frame (yellow border) shows all the characteristic data of the device including the model and the type of gas for which it was tested.

The plate also shows the QRcode to download the declaration of conformity of the device and to access the service portal from the app on the phone (yellow in the figure below).

Removing the side panel leads to an additional plate (red border), therefore hidden from the customer's eyes, which shows the QRcode to access the appliance documentation (user manuals, installation, wiring diagram, ...).

For gas-powered appliances, a sticker is applied in production indicating the type of gas for which the appliance was tested; the starter kit contains the stickers to correctly manage the identification of the type of gas in case of gas conversion.

Model identification

The unit is identifiable through a model identification code and a serial number.

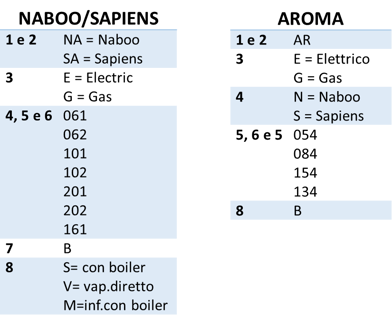

The model identification code consists of 8 digits with the following rules.
