ORACLE
The ORACLE is available in two different sizes ORAC__ and ORAC__XL
ORAC__ is available with 2 different power management and performances.
It’s furthermore possible to choose between 3 esthetic external colors: stainless steel, red and black

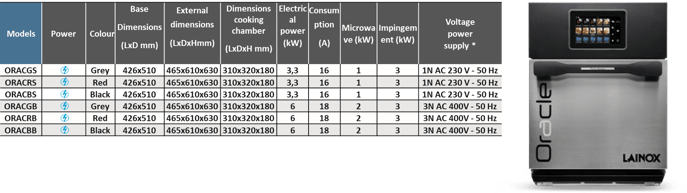

ORAC__ models
Cooking area/plate is 30x30 cm
ORAC__ models are available as Standard and Boosted models.
Standard operate only one magnetron per time and cabinet heating is alternative to the microwaves

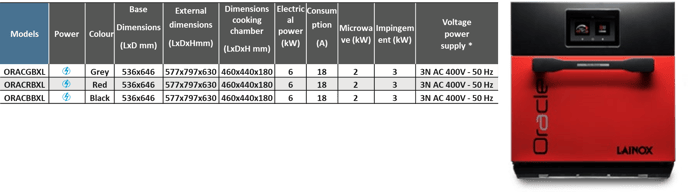

ORAC__XL models
Cooking area/plate is 40x40 cm
ORAC__XL is available only as Boosted model.
Boosted means that both magnetrons operate together
Main components of this model are the same of ORAC__ standard and boosted models
Oven identification
All appliances are identified by an identification plate applied to the back side.
The plate, see below, show all characteristic data of the device including the model, the power supply for which it was produced. The plate also shows QRcodes to download manuals, conformity declaration and configuration setup for the device.
A) ModelB) Commercial model
C) Serial number
D) Power supply
E) Microwave frequency
F) Production date
G) Max current per phase
H) Nominal electrical power
I) Microwaves heating power
J) Electrical heating power
K) Link to the installation manual
L) Link to the user manual
M) Link to the test report
N) Link to the unique cloud id of the unit
