Water plant

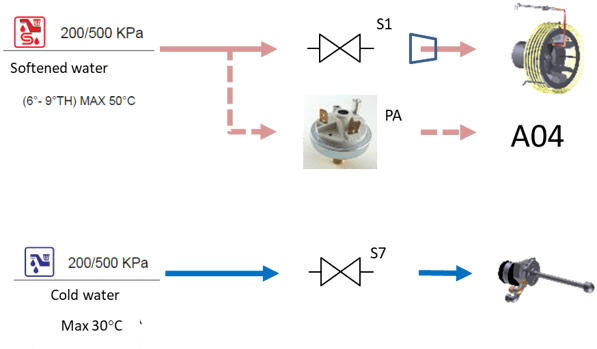

The appliance’s water system is divided into two parts: the softened water circuit and cold water circuit
The softened water circuit is used to produce the steam
The cold, untreated water circuit is used for the washing system
Solenoid valves
The solenoid valves are essentially all the same and are identified by the number of outlets and the possibility that one of the outlets may have no electrical coil installed
Possible to identify each solenoid by the name printed on the wire that connect it
Humidification valve S1
This solenoid valve is connected to the soft water inlet and has always applied a flow regulator; flow depends on the model and power supply.
This solenoid valve is driven by SD if unit is settled as direct injection O35
Washing valve S7
This solenoid, part of the washing system, is connected to the cold-water inlet and has no flow regulator it is connected to the washing system O41
Flow regulators
Solenoid valves used for steam production are always equipped with a flow regulator to supply the predetermined amount of water, regardless of the supply pressure.
Le régulateur est inséré dans la sortie de l’électrovanne, où il est poussé en place avec force.
