Neo24h - Functional diagram

Refrigeration cycle



The refrigeration cycle consists of the following phases

Compression of gas generating heat

Cooling of superheated vapors in the condenser

Steam -> liquid conversion in the condenser

Expansion of the liquid in the expansion valve

Complete evaporation of the liquid in the evaporator with consequent heat absorption

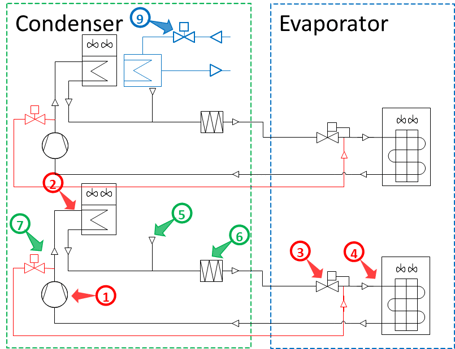

Functional diagram R290



Components of the actual product line are

1) Compressor

2) Condenser

3) Expansion valve

4) Evaporator

5) Pressure tap

6) Draier filter

7) Hot gas valve

8) Models 121 & 161 have a double circuit Condenser can be water cooled

9) Pressostatic valve

Functional diagram R452A



On units settled for R452A refrigerant you have also

1) Compressor

2) Condenser

3) Expansion valve

4) Evaporator

5) Liquid receiver

6) Heat exchanger (boosted only)

7) Pressure tap

8) High pressure switch

9) Draier filter

10) Liquid valve

11) Low pressure switch

12) Hot gas valve

13) Condensation evaporator
